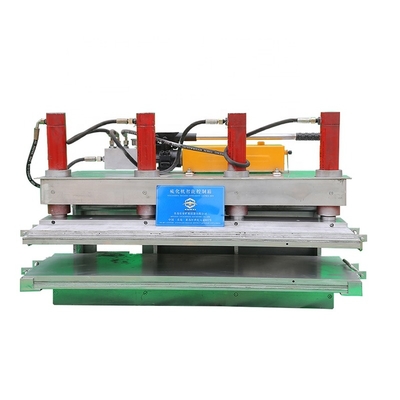

Belt-edge Repair Machine Hydraulic Edge Repair Machine Conveyor Belt Vulcanizing Vulcanizing Rubber Splicing Machine

1.0 Sets
MOQ
$2,800.00(1 - 4 Sets) $2,400.00(>=5 Sets)
τιμή
Belt-edge Repair Machine Hydraulic Edge Repair Machine Conveyor Belt Vulcanizing Vulcanizing Rubber Splicing Machine
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Pressure vessel, Pump
Voltage: Customer Request
Dimension(L*W*H): 1600*450*350 MM
Year: 2021
Warranty: 1 Year
Key Selling Points: High Safety Level
Power (kW): 13.5 kW
Weight (KG): 195 KG
Applicable Industries: Machinery Repair Shops, Construction works , Energy & Mining
Showroom Location: Turkey, Brazil, India, Russia, Thailand, Argentina
Product name: Edge repair vulcanizing press
Function: Rubber conveyor belt repair vulcanizer
Application: Belt-edge repair vulcanizing machine
Machine Type: Vulcanizing press repair machine
Material: High strength aluminum alloy
Belt Vulcanizing Temperature: 145℃
Working Pressure: 0~2 MPA
Heating Time: Less Than 25 Minutes
Curing Time Set Adjustable Range: 0-99 minutes
Max Conveyor Belt Width: 500-3500mm
After-sales Service Provided: Video technical support
After Warranty Service: Video technical support, Online support
Local Service Location: Italy, India, Spain, Thailand, Argentina
Πιστοποίηση: CE ISO
Βασικές πληροφορίες
Πιστοποίηση: CE ISO
Πληρωμής & Αποστολής Όροι
Packaging Details: Well packing by wooden box for oversea shipping
Supply Ability: 300 Set/Sets per Month
Περιγραφή προϊόντων
Products Description
Product Name
Edge Hydraulic Repair Vulcanizing Press Rubber Conveyor Belt Splicing Machine
Keywords
Belt-edge repair vulcanizing machine; Belt rubber conveyor belt hot splicing
Type
Rubber conveyor belt repair vulcanizer
Size(L*W*H mm)
1600*450*350

XL strip vulcanizing repair machine

XL strip vulcanizing repair machine ,also known as the belt-edge repair vulcanizing machine, is mainly applied to repair the long-distance damage ,longitudinal piercing as well as edge damages on the conveyor belt on site. It’s time-saving, efficient and easy operated.
Main Parts
Specification
Use Installation instructions：
1.Fill glue inthe damaged areas that need to be repaired(see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested);
2.Put the bottom plate, water pressure plate and lower heating plate under the damaged areasof the belt according to the structural diagram.
3.Put the upper heating plate,Insulation board on the damaged areasof the belt.Align the top and bottom plates.
4. Lockedequidistantlythen tighten the bolts.
5.Get the first power wire well connected to electric control box. Connect the second wire with electric control box and the upper and down plates.Note that it corresponds to the signon the electric control box.
6.Connect the end of the high pressure pipe with inlet opening of water pressure plate. And connect another end of the high-pressure pipe with water output hole of water pump.Switch on, add pressure upon vulcanizing machine.
(See the operation method of ATX electric control box).
The equipment can be customized as two type: oil pressure and water pressure.
Product packaging
We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.
